U-Arm Radiographic System
Motorized Automation
The U-Arm is a fully motorized radiographic system designed to automate imaging with pre-programmed positioning and full generator integration. All controls are managed via a technologist-friendly touchscreen console for seamless workflow.

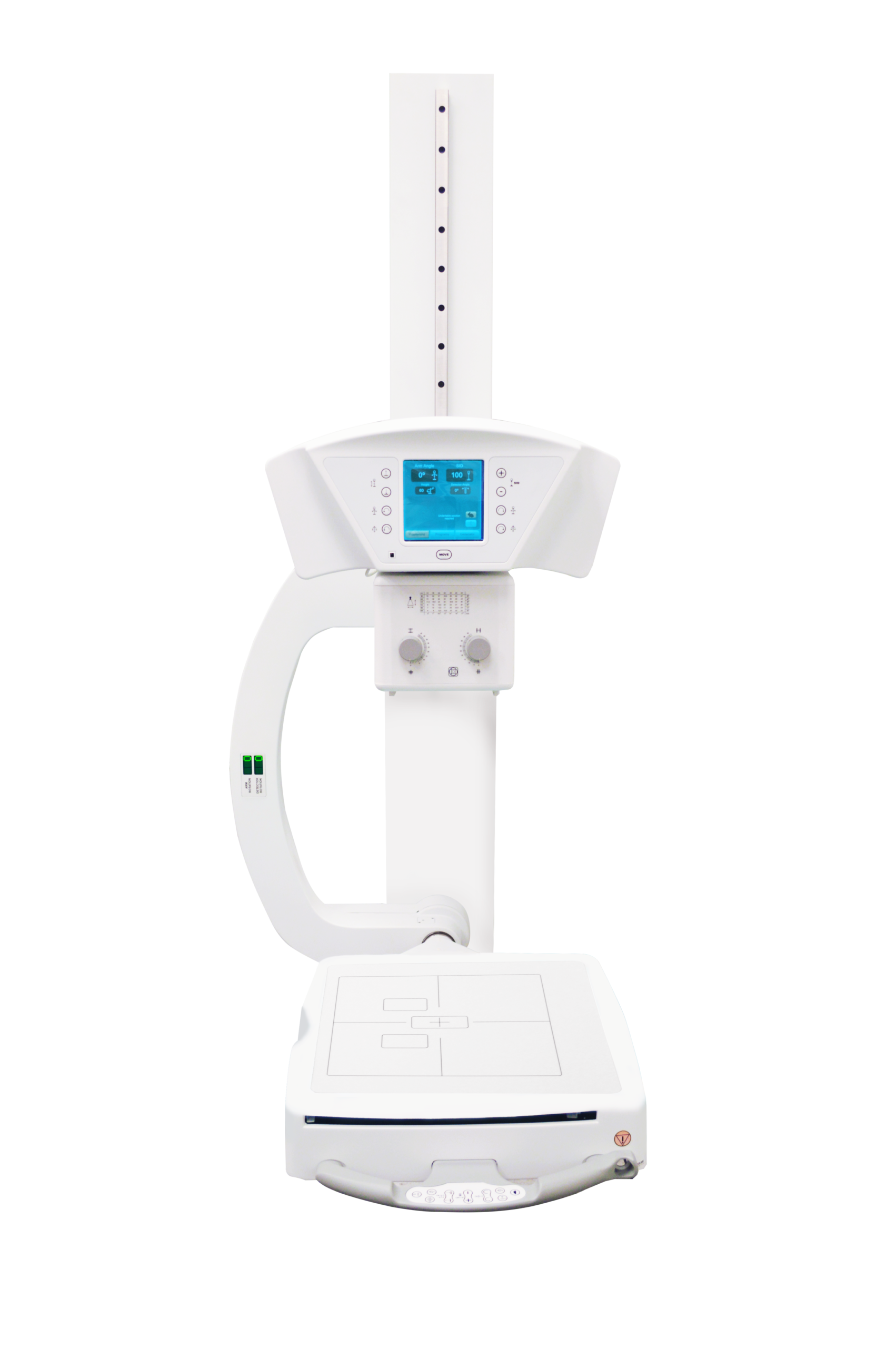

Perfect Alignment, Every Time
Linear U-Arm Design
With its linear U-Arm configuration, the tube and image receptor remain perfectly aligned regardless of arm angle. This feature is invaluable for auto-stitch applications targeting leg and back imaging, ensuring seamless long-length exams.
Versatile Examinations
Automated Swivel Arm & Rotating Receptor
Designed for a wide array of exams, the U-Arm’s automated swivel arm and rotating image receptor adapt to patients of all sizes—sitting, standing, or recumbent. Extensive vertical and SID travel enable full head-to-toe imaging with minimal repositioning.
Pre-programmed Positioning
Up to 25 Stored Positions
Save time by storing up to 25 custom positions for frequently used procedures. Technologists can select these presets directly from the tube-mounted touchscreen, reducing setup time and minimizing errors.
Convenient User Controls
Multiple Control Locations
The U-Arm offers flexible control points on the tube head, side of the image receptor, and an optional remote controller. This distributed control architecture eliminates the need to travel to a single console, streamlining operation and improving throughput.
Safe and Stress-Free
Electromagnetic Brakes & Anti-Collision Sensors
Integrated electromagnetic brakes and intelligently placed anti-collision sensors enhance safety, providing peace of mind for both technologists and patients during automated movements.
MT500 Mobile Table (Optional)
Enhanced Positioning Capabilities
Pair the U-Arm with the MT500 mobile table to access cross-table lateral and recumbent exams. The lightweight, maneuverable table facilitates fast positioning and expands the U-Arm’s exam versatility.
MT500 and Accessories →
Technical Specifications
| Specification | Value |
|---|---|
| Column Height | 91 in (231 cm) |
| Min. Focal-Spot-to-Floor (90° Position) | 15.3 in (40 cm) |
| Max. Focal-Spot-to-Floor (90° Position) | 66.5 in (169 cm) |
| Min. Receptor-Surface-to-Floor (0° Position) | 22 in (56 cm) |
| Max. Receptor-Surface-to-Floor (0° Position) | 41.34 in (105 cm) |
| Vertical Movement Speed | 40 to 150 mm/s |
| Arm Rotation | -30° / +120° |
| Rotation Speed | 2°–10°/s |
| Motorized SID Travel | 39.4 to 70.87 in (100 to 180 cm) |
| SID Travel Speed | 0.4 to 5.1 in/s |
| Receptor Rotation Angulation | ±45° |
| Receptor Rotation Speed | 1°–3°/s |
| Arm Weight | 719 lbs (326 kg) |
| Power Requirements | 230 VAC |
