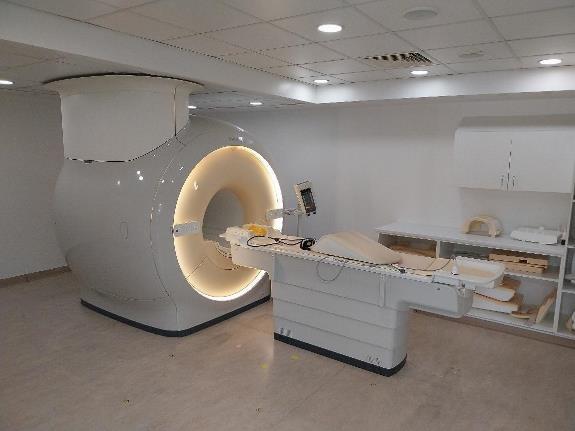

Philips Ingenia 1.5T MRI

SN 41355

YOM 2013

SYSTEM REPORT:

SYSTEM INFORMATION

Manufacturer and model: Philips Ingenia 1.5T MRI

System model no.: Ingenia 781396

System serial no.: 41355

System YOM: 2013

Gradient type: C781

Number of Channels: 16+

MAGNET INFORMATION

Magnet YOM: 2013 Jan

Magnet model no.: 58000-515

Magnet serial no.: 70146

Magnet pressure: 30.1 hpa

Shield temperature:

COOLING SYSTEM INFORMATION

Coldhead Label:

Compressor model no.: F50 Hw

Compressor YOM: 10/2012

Compressor running hours: 1062698

Compressor pressure level: 2.1

Last absorber replacement: Unknown

Cold-head model no.: RDK-408C3

Cold-head YOM: 2013 Sept

Last cold-head replacement: Unknown

PATIENT TABLE INFORMATION

Extra Patient Transport:

Table. model no.: 989603019293

Table serial no.: 523

Table YOM: 2014

Extra trolley available? Yes – 2013 YOM

Positioning pads incl.? Some

CONSOLE AND WORKSTATION(S) INFORMATION

Console model no.: Host HP440 459800908842

Console serial no.: CZC736932Z

Console software version: 5.6.1.3

Console software options: See Pictures at end of document:

ACCESSORIES, MANUAL HARD-COPIES AND SOFTWARE DISCS

Software and manuals (list): Latest software available 5.6.1. No service Packs

MAINTENANCE

Any major part replacements? Unknown

Is system logbook present? Yes

COMMENTS

Functional condition: 1.: Working and no issues noticed or reported.

2.: All coils present passed IQT.

Cosmetic condition: Good

COILS

Coil name & channels: Model no.: Serial no.: Test result

FC Anterior Coil 1.5T, 451001007239

dS Knee 16ch 1.5T, 453530252673

dS Breast 16ch 1.5T, 453530280726

dS Flex M, 30322321

dS Flex M, 22323

dStream Interface1.5T, 989603018948

Head Coil (used with ds base coil), 459800097954

Head/Neck coil (used with ds Base coil), 459800097961

ds Base Unit, 459800097944

Posterior Coil integrated into patient table, 452213277805

PHANTOMS

Model name: Amount: Model no.:

Bottle 5L, 452213096105

Bottle 3L, 452213081925

Bottle 2L, 452213228182

Bottle 1L, 452213081915

Bottle 250cc, 452213081905

Breast coil phantom 16ch: 1: 453530223112

Anterior & Posterior Phantom holder Plus 16 Bottles

200mm

400mm

Knee coil Phantom:

QA TESTING
