OTC18M Radiographic System
Versatile & User-Friendly
The OTC18M Radiographic System enhances patient comfort and streamlines workflow in high-volume imaging environments. Engineered for hospital radiology, imaging centers, and orthopedic clinics, its ceiling-mounted tube crane and touchscreen controls deliver exceptional performance across a wide range of radiographic studies.

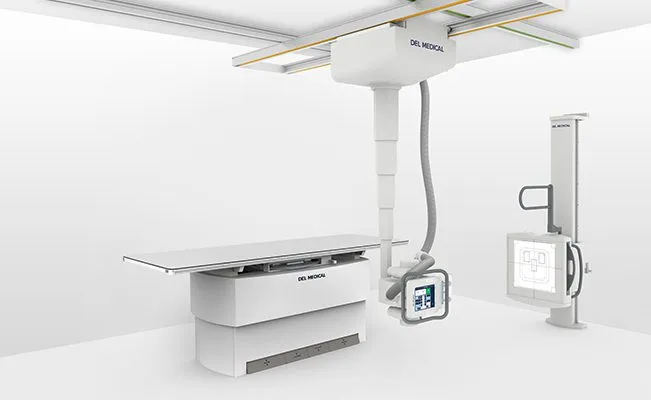

Flexible Positioning
Ceiling-Mounted Crane & Touchscreen Interface
The ceiling-mounted tube crane features an intuitive touchscreen that displays tube angulation, SID readouts, and generator settings. Color-coded movement buttons paired with an electromagnetic braking system ensure precise, effortless adjustments.
A five-stage telescoping column provides 71 in (180 cm) of vertical travel—facilitating comprehensive head-to-toe exams, from upright weight-bearing to recumbent tabletop procedures.
User-Friendly Accessibility
All-Lock Release Sensor
A conveniently placed all-lock release sensor above the tube head handle unlocks the system instantly when grasped. Technologists can make rapid, precise repositioning without interrupting patient care.
Auto-Collimation
Optimized Field-of-View
Auto-collimation accelerates patient positioning and minimizes radiation dose by automatically selecting the ideal field-of-view. Powered by DELWORKS DR acquisition software’s APR settings, this feature ensures accurate multi-exposure stitching with minimal overlap.
EV800 Four-Way Float-Top Table
Ergonomic Elevating Design
The EV800 elevating table’s four-point lift system and whisper-quiet motor lower the tabletop to 22 in (56 cm) for easy patient transfers. With an 800 lb (363 kg) capacity and recessed foot treadles, stable motion and table-side controls enhance technologist efficiency and patient comfort.
EV800 & Accessories →
VS300 Wall Stand
Electromagnetic “Fail-Safe” Locks
The VS300 wall stand uses electromagnetic “fail-safe” locks to ensure dependable positioning. Full receptor travel to the floor, patient-side handgrips, and optional overhead grips enable ergonomic, strain-free upright exams. The handgrip’s ergonomic design follows wrist motion for smooth vertical travel.
VS300 & Accessories →
VS50 Wall Stand
LLI Detector Housing
The VS50 wall stand securely houses the DELWORKS LLI detector for long-length and upright exams. With a positive mechanical lock (no power needed) and concealed counterbalance, the active area moves from 1.5 in (3.8 cm) to 81 in (205.7 cm) above floor level—ideal as a dedicated long-length stand or primary wall stand.
VS50 & Accessories →
Rotating Tray (Optional)
One-Handed Detector Rotation
The rotating tray allows effortless portrait-to-landscape rotation of the DR detector without removal. Fully extended steel slides lock securely to protect the detector during loading and unloading—accommodating ISO 14 × 17 in (35 × 43 cm) panels.
Technical Specifications
| Specification | Value |
|---|---|
| Room Height | 105–119 in (267–302 cm) |
| Room Height (with Telescopic Extension) | 105–127 in (267–322 cm) |
| Vertical Telescopic Travel | 70.8 in (180 cm) with 32.7 in (83 cm) focal spot-to-ceiling; 15.5 in (39.4 cm) focal spot-to-floor at 9 ft ceiling |
| Longitudinal Travel Range | Standard: 14 ft rail (136.2 in / 346 cm); Optional: 219.9 in (558.5 cm) max |
| Transverse Travel Range | Standard: 10 ft bridge with 9.8 ft carriage (86.6 in / 220 cm); Optional: 13 ft bridge with 13.1 ft carriage (139.7 in / 355 cm) |
| Detent Positions (Longitudinal) | Configurable during installation |
| Tube Rotation (Horizontal Axis) | -120° to +120° (Detents: -90°, 0°, +90°) |
| Tube Rotation (Vertical Axis) | -182° to +154° (Detents: -180°, -90°, 0°, +90°) |
| Weight (with Collimator & Tube) |
Tube Crane: 507 lbs (230 kg) 10 ft (3 m) Transverse Bridge: 154 lbs (70 kg) 13 ft (4 m) Transverse Bridge: 198 lbs (90 kg) Longitudinal Rails: 59 lbs (26.5 kg) |
| Power Requirements | 24 VDC, 8 A (Supplied by DM-PSI) |
