MDR Mobile Radiographic System
All-in-One Mobile Solution
Powered by an onboard 40kW high-frequency generator, a 300kHu X-ray tube, and the user-friendly DELWORKS image acquisition workstation, the MDR serves as a comprehensive mobile imaging solution.

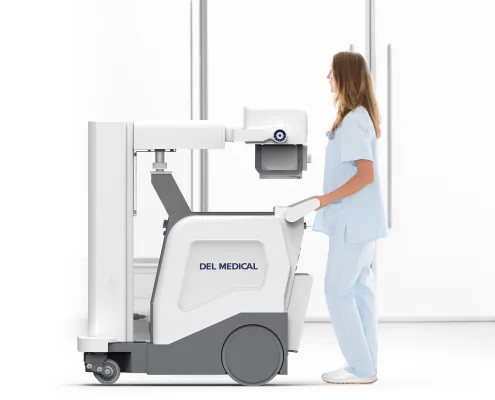

Collapsible Column Design
Compact & Navigable
The MDR’s collapsible column allows smooth navigation through tight spaces without the visual obstruction of a traditional column, making bedside imaging in crowded areas simple and efficient.
Maneuverable and Safe
Motor-Assisted Drive & Safety Bumpers
The motor-assisted drive adjusts to the operator’s walking pace, providing smooth, predictable control in confined spaces. A fail-safe drive handle stops movement when released, and a touch-sensing anti-collision bumper alerts users to accidental contact.
Motor-Assisted Inching
Precision Bedside Setup
Tube head–mounted controls allow subtle forward, backward, left, and right movements—enabling precise adjustments without returning to the drive handle, crucial for efficient bedside exams.
Single-User Interface
DELWORKS Workstation Integration
The DELWORKS-driven MDR workstation integrates all system components into a single control hub. Technologists can view generator and detector data on a 19″ high-contrast touchscreen with wide viewing angles—enhancing workflow and continuous monitoring.
Lightweight, Wireless DR Detectors
E-Series Detector Compatibility
The MDR is compatible with DELWORKS E-Series wireless detectors in 14 × 17 in (35 × 43 cm) and 10 × 12 in (24 × 30 cm) sizes—offering mobility and high image quality.
DELWORKS EDR →
Convenient Storage
Built-In Storage Compartment
The MDR offers ample storage for accessories—grids, spare batteries, and E-Series detectors—plus an integrated detector charging cable, ensuring everything stays organized and accessible.
Full Day Battery Life
Long-Lasting Performance
A maintenance-free lead-acid battery provides up to 8 hours of continuous movement and imaging. A retractable power cord reel allows access to nearby outlets without tangled cords—keeping workflows uninterrupted.
Technical Specifications
| Specification | Value |
|---|---|
| Width (Transport Position) | 22.7 in (57.6 cm) |
| Length (Transport Position) | 46.2 in (117.3 cm) |
| Height (Transport Position) | 53.3 in (135.4 cm) |
| Transport Handle Height | 35 in (89 cm) |
| Focus–Ground Distance | 27.2 to 80 in (69 to 204.5 cm) |
| Max Height | 85.7 in (217.7 cm) |
| Arm Extension (Telescopic) | 14.2 in (36 cm) |
| Front Range | 28 to 42 in (71 to 107 cm) |
| Lateral Range | 20 to 34.5 in (51.7 to 87.7 cm) |
| X-ray Tube Head Rotation | A-swivel ±180°; B-swivel ±320° (transport); C-swivel 127° (90° forward, 37° back) |
| Speed Forwards (Transport) | 0–3 mph (0–1.4 m/s) |
| Speed Forwards (Working) | 0–1.6 mph (0–0.72 m/s) |
| Speed Backwards | 0–1.6 mph (0–0.72 m/s) |
| Weight (Batteries Included) | 959 lbs (435 kg) |
| Power Requirements | 230 VAC |
