FWFC System
Affordable Quality & Reliability

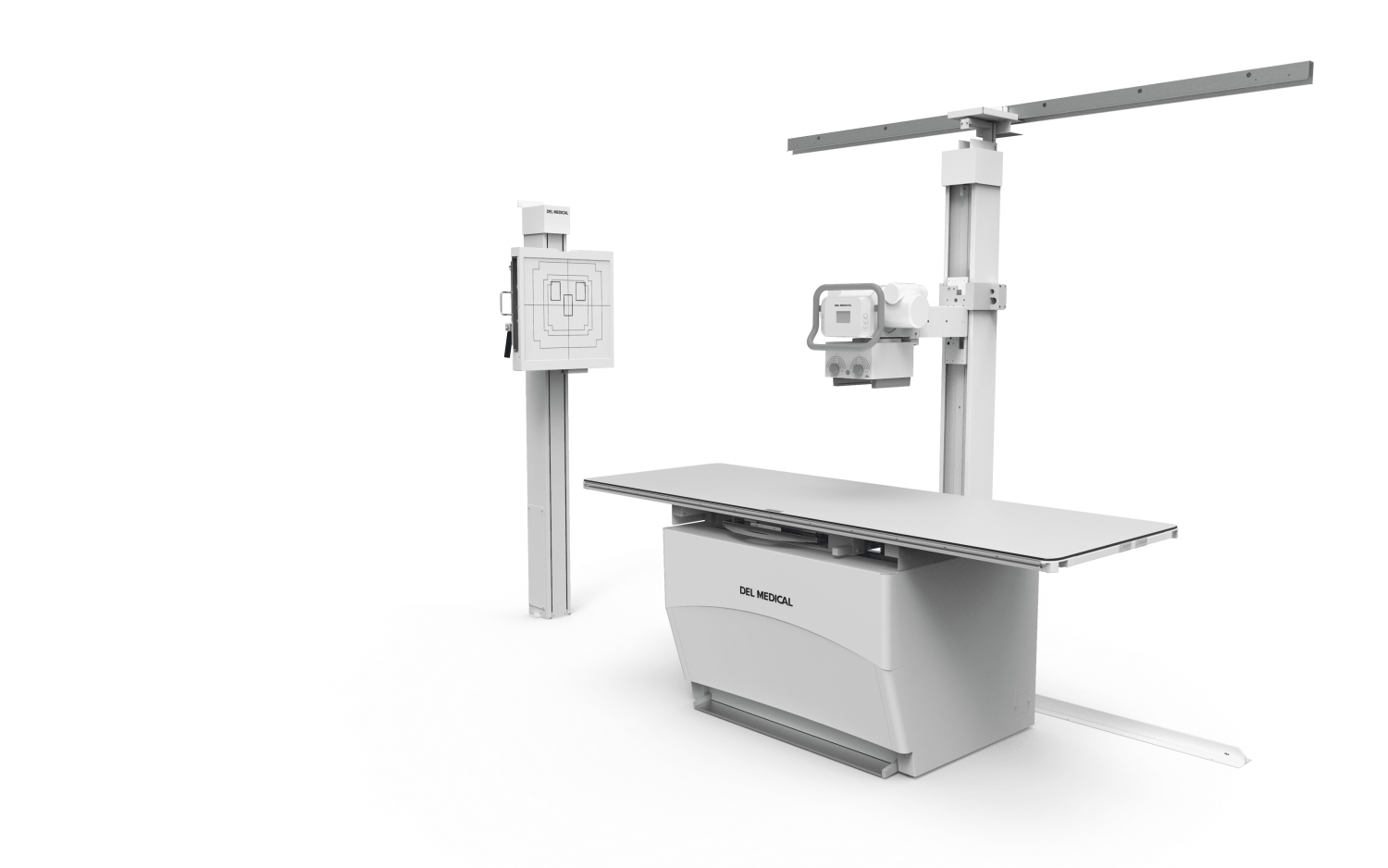

The DEL MEDICAL FWFC System delivers a cost-effective, adaptable radiographic solution for smaller imaging centers and urgent care clinics. Its compact footprint minimizes room modifications, while the optional upper wall or ceiling-mounted rail ensures smooth longitudinal movement and rapid positioning.
Budget-friendly without sacrificing durability, the FWFC System’s rugged construction and consistent performance make it ideal for low- to moderate-volume settings. Proudly built in the USA for years of dependable service.
Compact Precision
Rotating Tube Stand
The FWFC rotating tube stand offers remarkable versatility. A 180° column rotation with detent stops, electric vertical and longitudinal locks, and 9 in (23 cm) of transverse travel allow fast, accurate positioning for every view.
Power and high-tension cables are wrapped in flexible, non-porous housing—keeping the workspace clean, safe, and free of clutter while saving valuable floor space.
Four-Way Float Top Table
RT100 Table
The RT100 table supports up to 700 lbs (318 kg) and features a durable, stain-resistant tabletop with four-way float on precision roller bearings. Float movements lock and unlock via a heavy-duty foot treadle, ensuring smooth, controlled adjustments.
A standard cassette tray accommodates 14 × 17 in (35 × 43 cm) or 17 × 17 in (43 × 43 cm) detectors. Its all-steel frame and welded base provide unmatched strength, and the base can house Anthem generator electronics—ideal for space-saving installations.
RT100 & Accessories →
Ergonomic Wall Stand
VS100 Upright Wall Stand
The ultra-compact VS100 uses an electric lock-release handle and dual counterweight cables to prioritize safety and ease of use. With 58 in (148 cm) of vertical travel, it handles everything from skull to weight-bearing knee and ankle exams while maintaining a minimal footprint.
VS100 Wall Stand →
Rotating Tray (Optional)
One-Handed Detector Rotation
The rotating tray allows effortless portrait-to-landscape rotation of the DR detector without removal. Steel slides fully extend and lock to protect the detector during loading and unloading, accommodating ISO 14 × 17 in (35 × 43 cm) panels.
Technical Specifications
| Specification | Value |
|---|---|
| Ceiling Height | Min: 96 in (244 cm); Max: 116 in (295 cm) |
| Vertical Travel | Min: 12 in (26.5 cm); Max: 73 in (189 cm) |
| Longitudinal Travel | 72 in (183 cm) on 8 ft rail |
| Rail Length Options | 8 ft (2.4 m) standard; optional 6 ft (1.8 m), 10 ft (3 m), or 12 ft (3.7 m) |
| Transverse Travel | 9 in (23 cm) |
| Floor-to-Focal Spot (Platform Mount) | Min: 10 in (25.4 cm); Max: 74.5 in (190 cm) |
| Column Rotation | ±180° with detents at 0°, 90°, 270° |
| Tube Rotation | ±180° |
| Net System Weight | 200 lbs (91 kg) (excluding tube, collimator, counterweights) |
| Power Requirements | 115 VAC (1 A) or 230–240 VAC (2 A) 50/60 Hz |
