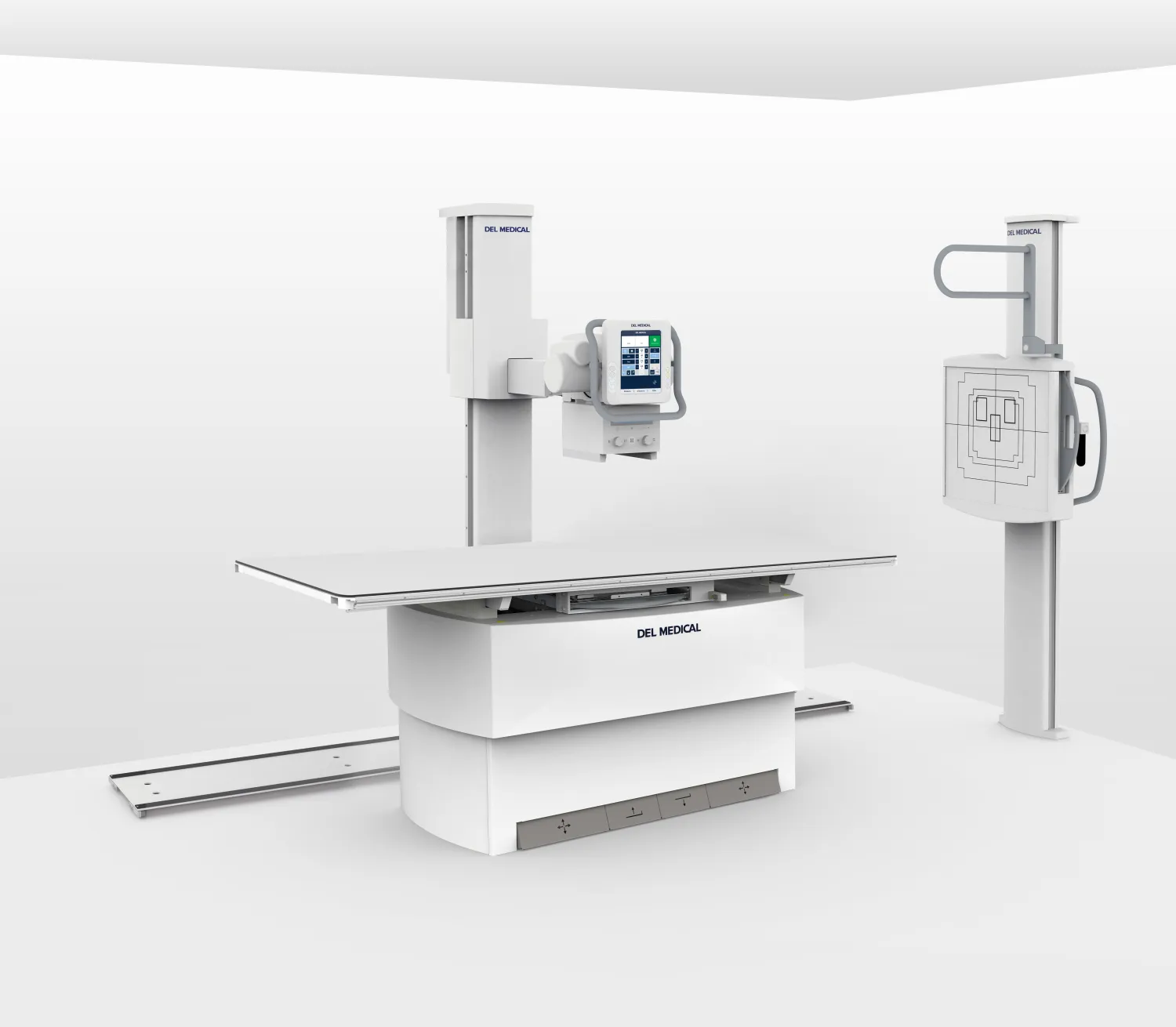

FMT18M Digital Radiographic System
Smart & Durable Floor-Mounted Imaging
The FMT18M Digital Radiographic System is engineered for efficient, high-quality digital x-ray in low-ceiling clinics and urgent care centers. Its robust floor-mounted design delivers smooth longitudinal travel and precise positioning—ideal for busy radiology workflows.
Expert Precision
10.4″ Touchscreen Interface
The FMT18M comes equipped with a responsive 10.4″ technologist-friendly touchscreen, integrating tube-stand controls and large, clear readouts. Ergonomic buttons facilitate accurate vertical and longitudinal movements, while a 180° rotating tube column enables seamless cross-table lateral exams.
Intuitive Control

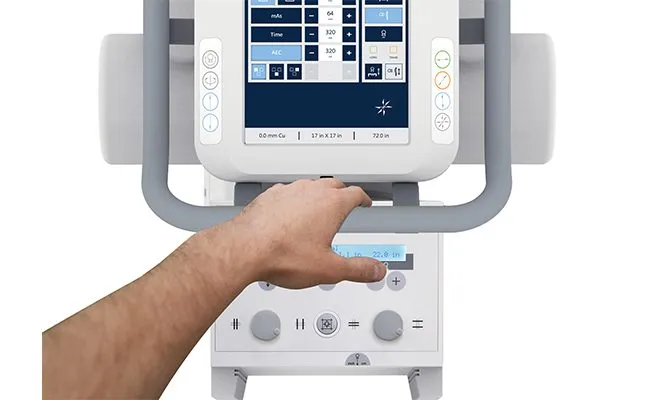

All-Lock Release Sensor
A conveniently located all-lock release sensor above the tube head handle unlocks the system instantly when grasped, enabling rapid manual adjustment and precise tube head placement.

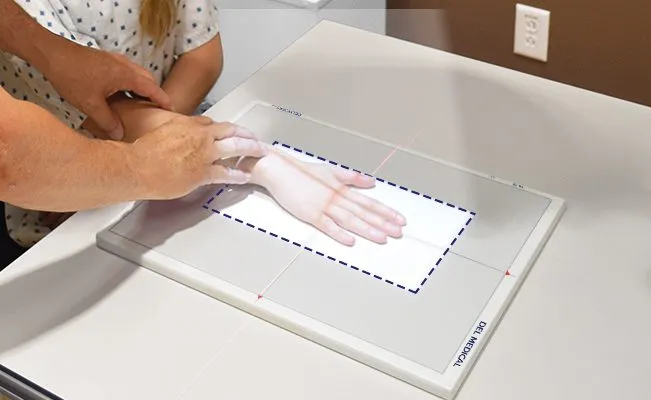

Auto-Collimation
Optimal Field-of-View
Auto-collimation accelerates patient positioning and reduces radiation dose by automatically selecting the ideal field-of-view for each exam. This feature is powered by DELWORKS DR acquisition software’s pre-programmed APR settings.

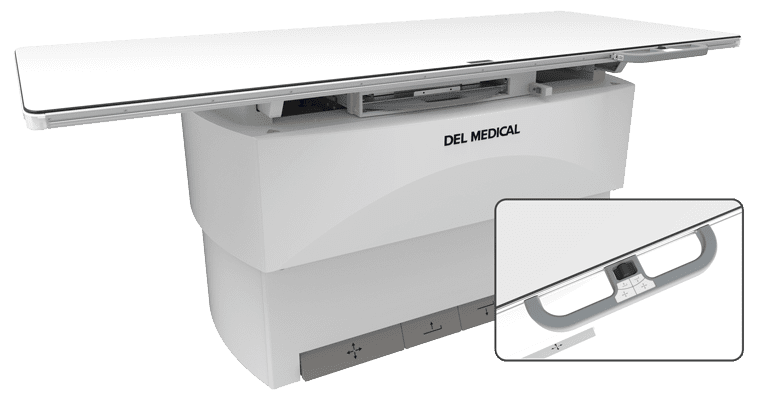

EV800 Elevating Table
Four-Way Float-Top Design
The EV800 elevating table’s four-way float-top and whisper-quiet motor lower the scratch-resistant tabletop to 22 in (56 cm) for comfortable patient transfers. With an 800 lb (363 kg) capacity and recessed foot treadles, stable movement enhances technologist productivity.
EV800 & Accessories →
Ergonomic Wall Stand
VS300 ‘Fail-Safe’ Locks
The VS300 wall stand features electromagnetic “fail-safe” locks for secure positioning. Full receptor travel to floor level, patient-side handgrips, and optional overhead grips deliver a smooth, ergonomic upright exam experience.
VS300 & Accessories →

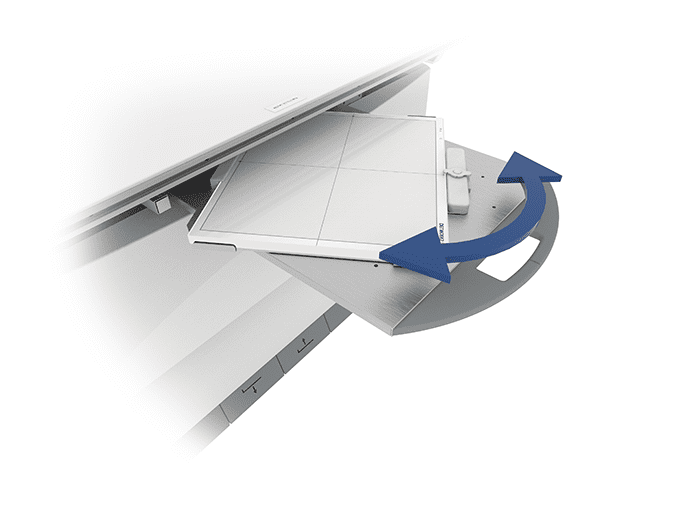

Rotating Tray (Optional)
One-Handed Detector Rotation
The optional rotating tray enables quick portrait-to-landscape conversion without removing the detector. Fully extended steel slides lock securely to safeguard the detector during loading and unloading, accommodating ISO 14 × 17 in (35 × 43 cm) panels.
Technical Specifications
| Specification | Value |
|---|---|
| Minimum Ceiling Height | 87 in (221 cm) |
| Column Height | 85.4 in (217 cm) |
| Total Vertical Travel | 64.5 in (164 cm) |
| Floor to Focal Spot (Standard Mount) | Min: 11 in (28 cm); Max: 75.5 in (192 cm) |
| Longitudinal Travel | 94 in (239 cm) |
| Floor Plate Length | 120 in (305 cm) |
| Transverse Travel | 11 in (28 cm) |
| Tube/Collimator/Cable Capacity | 88 lbs (40 kg) |
| System Weight (Including Track & Components) | 950 lbs (431 kg) |
| Column Rotation | 180° (installation permitting) |
| Tube Rotation | ±180° (Detents for lateral decubitus) |
| Base to Rear Wall | 8 in (20.5 cm) |
| Power Requirements | 99–132 / 198–264 VAC 50/60 Hz |
| Optional Accessories |
– Manual collimator – 8 ft or 12 ft floor plates – DAP (Dose Area Product) meter – Full system integration (with or without generator control) |
