DELWORKS LLI Wireless Detector

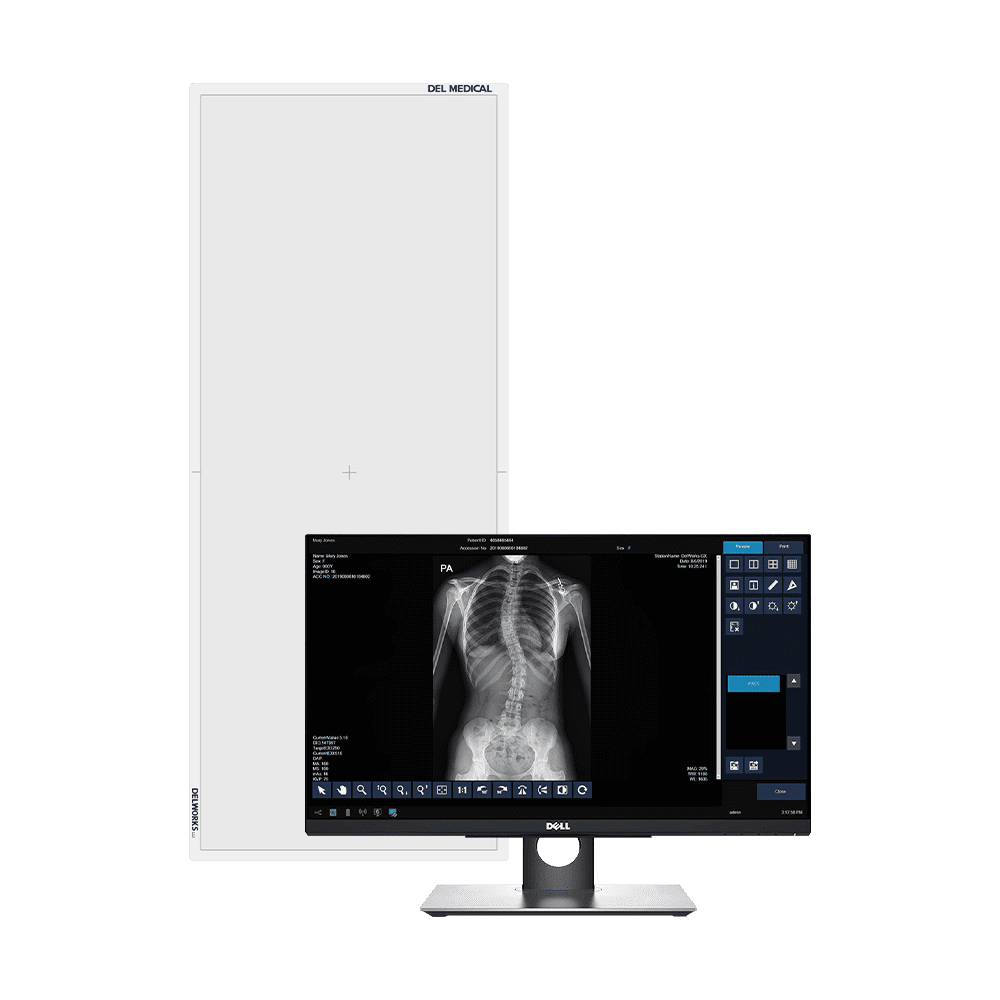

Wireless Long-Length Detector
Enhance imaging workflow and lower patient dose with the DELWORKS LLI Wireless Long-Length Detector. Its expansive 17 × 42 in (43 × 107 cm) active area captures full-spine and long-leg exams in a single exposure—eliminating stitching errors and ensuring diagnostic confidence. Portable and compatible with any X-ray generator, the LLI leverages highly sensitive AED technology to synchronize exposures seamlessly.
Mobile Positioning Holder
Multi-Positional Flexibility
The Mobile Positioning Holder supports upright, supine under-table, or cross-table procedures—ideal for OR imaging. Its telescoping arm and full-rotation adjustable head accommodate precise angulation. The pneumatic piston provides 64 in (162.6 cm) of vertical travel; counterbalanced locks and heavy-duty casters ensure stability and easy maneuvering.
- Piston-driven vertical travel: 64 in (162.6 cm)
- Adjustable head with full angulation range
- Locking casters for secure positioning
- Counterbalanced for minimal effort during adjustment
Mobile Vertical Holder
Compact & Low-Profile Design
The Mobile Vertical Holder accommodates the DELWORKS LLI and removable grid. With manual height adjustment from 1.75 in (4.45 cm) to 71 in (180 cm), it captures low-angle and upright exams. Its compact footprint and locking wheels make it easy to store and reposition.
- Manual height range: 1.75 in (4.45 cm) to 71 in (180 cm)
- Rotates LLI detector between portrait and landscape
- Compact design for easy storage
- Locking casters for stable imaging
VS50 Long-Length Wall Stand
Wall-Mounted Long-Length Solution
The VS50 Wall Stand safely houses the LLI detector for long-length and standard upright exams. Its wall-hugging design extends less than 7 in (17.8 cm) from the wall to receptor plane. A concealed counterbalance enables effortless vertical travel, while left/right load capability and integrated lead backing protect against scatter—no power required.
- Full range vertical travel for 17 × 42 in LLI
- Concealed counterbalance system for smooth motion
- Wall-hugging footprint: < 7 in (17.8 cm) clearance
- Left or right detector loading
- Lead backer for backscatter protection
- Operates without external power
Optional 17 × 42 in Grid
High-Performance Grid
Pair the LLI detector with the optional 17 × 42 in (43 × 107 cm) grid for superior image quality in OR and radiographic settings. Featuring an 8:1 ratio, 103 LPI, and a focal range from 44 in (111.8 cm) to infinity, this grid minimizes scatter and enhances contrast.
Supine Detector Cover & Tabletop Pads
Protective Covers for Patient Comfort
The Supine Detector Cover supports up to 500 lb (227 kg), safeguarding the LLI during supine exams. Paired with Tabletop Pads, it distributes weight evenly for patient comfort and stable imaging.
- Detector cover dimensions: 54.4 × 24 × 3.4 in (138.2 × 61 × 8.6 cm)
- Supports up to 500 lb (227 kg)
- Tabletop Pads provide a level, comfortable surface for patients
Technical Specifications
| Specification | Value |
|---|---|
| Scintillator | Cesium |
| Detector Technology | a-Si |
| Active Image Area | 17 × 42 in (43 × 107 cm) |
| Pixel Matrix | 7680 × 3072 (24 MP) |
| Pixel Pitch | 139 μm |
| A/D Conversion | 16-bit |
| Minimum Detectable Dose | 20 nGy |
| Maximum Linear Dose (RQA5) | 115 μGy |
| MTF @ 1.0 LP/mm | 0.64 / 0.70 / – |
| MTF @ 2.0 LP/mm | 0.33 / 0.41 / 0.44 / – |
| MTF @ 3.0 LP/mm | 0.23 / 0.25 / – |
| DQE @ 0.0 LP/mm | 0.67 / 0.71 / – |
| DQE @ 1.0 LP/mm | 0.52 / 0.56 / – |
| DQE @ 2.0 LP/mm | 0.43 / 0.46 / – |
| DQE @ 3.0 LP/mm | 0.18 / 0.22 / – |
