DELWORKS Imaging Software
Smart & User-Friendly Acquisition
DELWORKS is an advanced image acquisition and processing platform that combines sophisticated automation with an intuitive interface. Designed to streamline radiographic exams, DELWORKS reduces technologist workload by automating complex decisions, delivering high-quality images with minimal dose—and eliminating unnecessary repeats.
Integrated Pre-Exposure Display
Unified Patient & Procedure Information
Pre-exposure, DELWORKS displays patient demographics, exam type, and generator exposure factors on a single screen—streamlining setup. Status indicators and control functions are consolidated for rapid, error-free operation.
- Positioning guide: prompts correct patient alignment for each view
- Deviation Index (DI): standardized dose reporting to minimize exposure
- APR-based image processing: exam-specific algorithms automatically optimize each image
Advanced Image Processing
Enhanced Algorithms & Tools
DELWORKS leverages powerful anatomical programming to automatically adjust LUTs, window/level, and filters—ensuring optimal contrast and resolution for each patient. Technologists can refine settings manually, if needed.
- Auto-rotate images in 90° increments; horizontal mirroring
- Automatic and manual cropping to collimated area
- Comprehensive measurement tools and detailed pixel histograms
- Easy verification and correction of laterality and orientation
- Orientation markers and text annotations—predefined or free text
PICC Enhancement & QA Reporting
PICC Tool & Rejected Image Analysis
Easily visualize catheters, leads, and tubes with the PICC-specific processing tool. DELWORKS also offers robust management, analysis, and reporting of rejected images—streamlining quality assurance and reducing retakes.

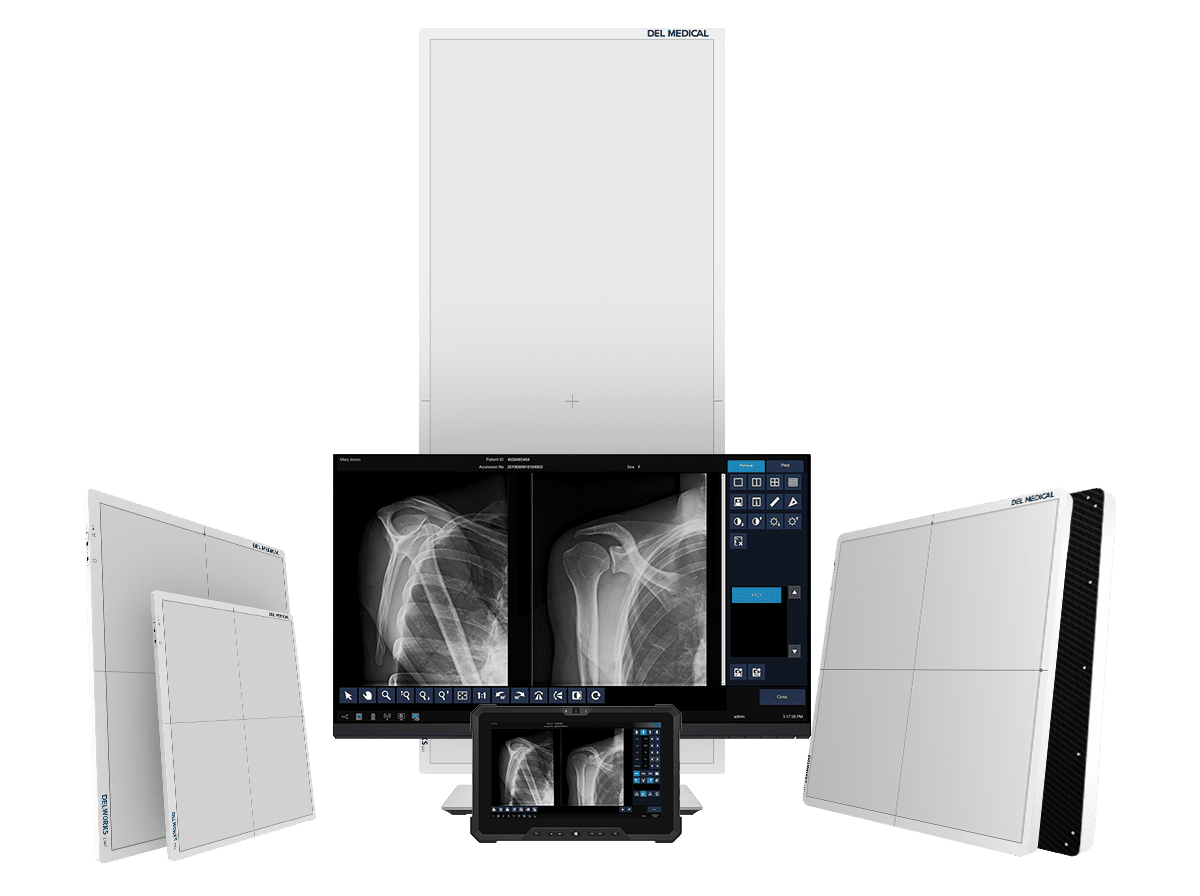

Premium Detector Options
Wireless Cesium-Iodide Detectors
DELWORKS supports single, dual, or multi-detector configurations to fit any clinical workflow. Choose from ultra-light portable or fixed panel detectors for optimal coverage and efficiency:
- E24Cw²: 10×12 in (24×30 cm) wireless Cesium detector—lightweight, glass-free, optimized for mobile use
- E14Cw²: 14×17 in (35×43 cm) wireless Cesium detector—compact design for versatile applications
- E17Cw²: 17×17 in (43×43 cm) wireless Cesium detector—ideal for multi-detector, upright exams
- E17C: 17×17 in (43×43 cm) fixed Cesium detector—streamlines dual or multi-detector setups
- LLI: 17×42 in (43×107 cm) long-length detector—eliminates stitching artifacts, reduces dose for spine and leg imaging
EasyConnect & EasyShare Technology
Wireless & Shared Workflow
All DELWORKS E-Series detectors feature EasyConnect Auto-Exposure Detection (AED), capturing images instantly when exposed. Detectors can be shared across multiple DELWORKS workstations—maximizing utilization and streamlining workflow.
- Share E14Cw² between mobile MDR and radiographic suites
- Share E24Cw²/E14Cw² across multiple DELWORKS FIT or fixed systems
- Tablet-based DELWORKS FIT workstation for patient-side imaging on the go
- DELWORKS Laptop option with 15.6″ Full HD display and 512GB SSD storage
Quality Assurance & Phantom Testing
Comprehensive QC Phantom
Ensure DR detector accuracy with the DR QC Phantom. Perform monthly and semi-annual tests including exposure linearity, contrast reproducibility, artifact detection, spatial resolution, beam alignment, measurement tool accuracy, and display jitter evaluation.
Detector Technical Specifications
| Detector | E24Cw² | E14Cw² | E17Cw² | E17C | LLI |
|---|---|---|---|---|---|
| Scintillator | Cesium Iodide (CsI) | Cesium Iodide (CsI) | Cesium Iodide (CsI) | Cesium Iodide (CsI) | Cesium Iodide (CsI) |
| Detector Tech | a-SI | a-SI | a-SI | a-SI | a-SI |
| Active Area | 10×12 in (24×30 cm) | 14×17 in (35×43 cm) | 17×17 in (43×43 cm) | 17×17 in (43×43 cm) | 17×42 in (43×107 cm) |
| Pixel Size | 99 μm | 99 μm | 99 μm | 148 μm | 139 μm |
| A/D Conversion | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits |
| DQE @ 0 lp/mm | 70% | 70% | 70% | 65% @ 0.05 lp/mm | 0.67 / 0.71 / – |
| Generator Voltage | 40–150 kV | 40–150 kV | 40–150 kV | N/A | 40–150 kV |
| Spatial Resolution | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.5 lp/mm | 3.6 lp/mm |
| Auto Exposure Detection | Full-field | Full-field | Full-field | No | Yes |
| Data Interface | IEEE 802.11ax | IEEE 802.11ax | IEEE 802.11ax | Ethernet | 802.11 a/b/g/n (2.4/5 GHz) or Ethernet |
| Weight | 3.5 lbs (1.6 kg) | 5.3 lbs (2.4 kg) | 6.6 lbs (3 kg) | 25.8 lbs (11.7 kg) | 22 lbs (10 kg) |
